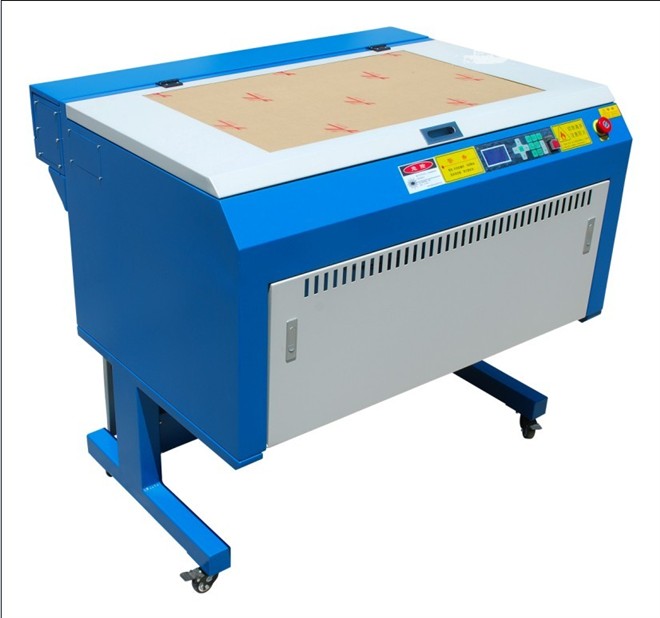

YH-G8050 Laser engraving and cutting machine for paper
imported linear guide,
red light position,
electronic lift platform,
no water warning system.
Detailed features:
1. the appearance and the structure of the machine are really appreciated by our customer.
2. It adopts the imported Linear rail to guarantee the smoothness of the light knife moving, and high engraving precision.
3. It adopts the exclusive no water warning and automatic protection system to ensure the stability and safety of the machine.
4. It adopts the electronic control lift platform to up and down the moving tale for 250mm.
5. (Optional one) Auxiliary rotary device, it is used to process the cylinder object such as cup, brush pot, musical instrument etc.
Parameters
Model
|
YH-G9060
|
YH-G8050
|
Engraving Area
|
900X600mm
|
800X500mm
|
Engraving Speed
|
0-60000mm/min
|
0-60000mm/min
|
Cutting speed
|
18000mm/min
|
18000mm/min
|
Laser power
|
60w/80w
|
50w/60w
|
Natural life of laser
|
2000hours
|
2000hours
|
Laser wave length
|
10.64um
|
10.64um
|
Minimum shaping character
|
Chinese character 2mm/ letter 1mm
|
Chinese character 2mm/ letter 1mm
|
Resetting positioning accuracy
|
±0.01mm
|
±0.01mm
|
Power Supply
|
Ac220v±10%,50HZ
|
Ac220v±10%,50HZ
|
Gross Power
|
1250w
|
1250w
|
Operating Temperature
|
0-30
|
0-30
|
Operating humidity
|
5%-95%
|
5%-95%
|
Graphic Format Supported
|
BMP,JPEG,PLT,DXF,AI,DST
|
BMP,JPEG,PLT,DXF,AI,DST
|
Driver Type
|
Stepper Motor
|
Stepper Motor
|
Cooling
|
Water cooling
|
Water cooling
|
Opearate System
|
Win 7/Win2000/WinXP
|
Win 7/Win2000/WinXP
|
Max Cutting thickness
|
20mm
|
10mm
|
Optional Configuration
|
Auto moving platform,Rotary device,
|
Auto moving platform, Rotary device,
|
Net Weight
|
240KG
|
190KG
|
Dimension
|
1430x1000x1030mm
|
1170x885x1160mm
|
